高温高压安全阀(弹簧全启式)
A48Y-C 型适用于温度≤425℃; A48Y-V型适用于温度≤550℃的电站锅炉、压力容器、减温减压装置上,作为超压保护装置。
  A48Y-C type applicable temperature are less than 425℃; A48Y-V type is suitable for the exceeding pressure protective equipment, their working temperature is 550℃ or less. Such as the boiler used in powerstation,pressure ontainer,pressure reducing and temperature reducing machine.

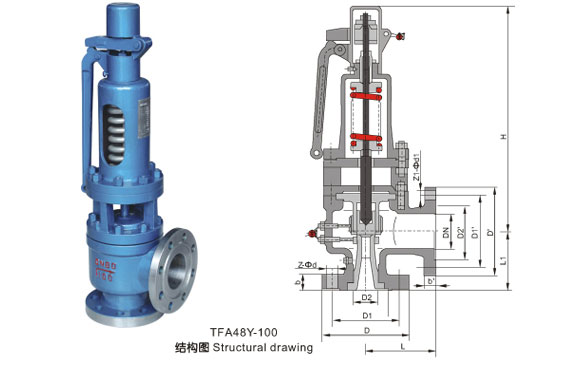

主要外形及连接尺寸 Main external and connecting dimensions

Type DN Nominal diameter  Connecting dimensions (mm)
L L1  H D D1  D2  b Z- d DN1  D' D1' D2' b' Z1-    d1
A48Y-P543.82V 65 190 190 853 220 170 110 50 8-25 150 300 250 204 30 8-25
A48Y-10 80 190 190 853 230 180 121 50 8-25 150 300 250 204 30 8-25
A48Y-10 65 190 190 853 220 170 110 50 8-25 150 300 250 204 30 8-25
A48Y-P543.82V 80 190 190 853 230 180 121 50 8-25 150 300 250 204 30 8-25
A48Y-20 65 210 210 933 260 203 97 55 8-30 150 300 250 204 30 8-25
A48Y-P545.29V 65 210 210 933 260 203 97 55 8-30 150 300 250 204 30 8-25
A48Y-20 80 210 210 933 260 203 116 60 8-34 150 300 250 204 30 8-25
A48Y-P545.29V 80 210 210 933 290 230 116 60 8-34 150 300 250 204 30 8-25
A48Y-20 80 210 210 933 290 230 116 60 8-34 150 300 250 204 30 8-25
A48Y-P5410V 80 210 210 933 290 230 116 60 8-34 150 300 250 204 30 8-25
A48Y-20 65 210 210 933 290 230 116 60 8-34 150 300 250 204 30 8-25
A48Y-P5410V 65 210 210 933 290 230 116 60 8-34 150 300 250 204 30 8-25
